Aluminum Full-View Doors
✭Maximum Width and Height values listed are Standard sizing.
*With clear insulated glass
***
Clopay's proprietary polyurethane Intellicore insulation.
Aluminum Full View

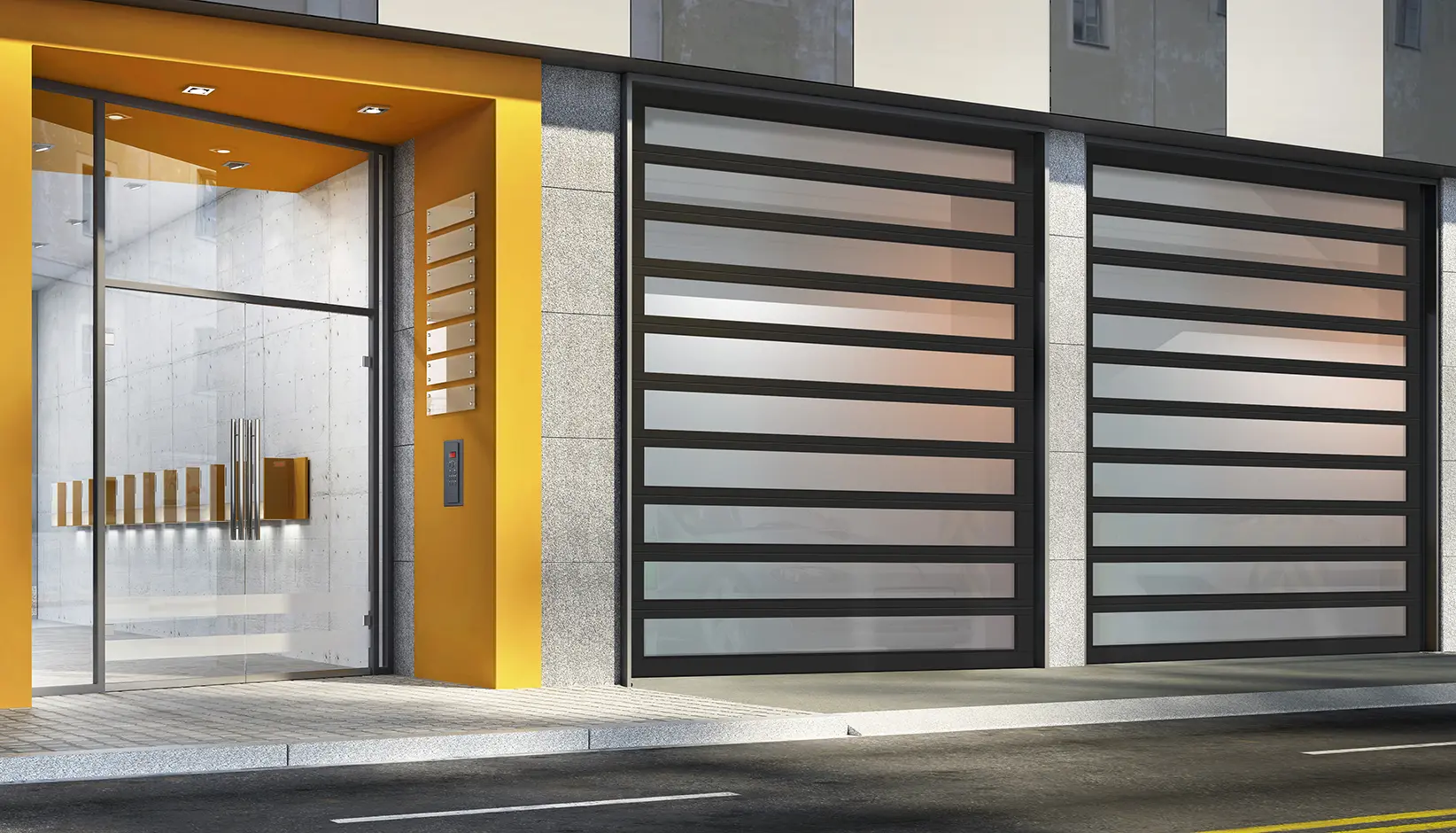

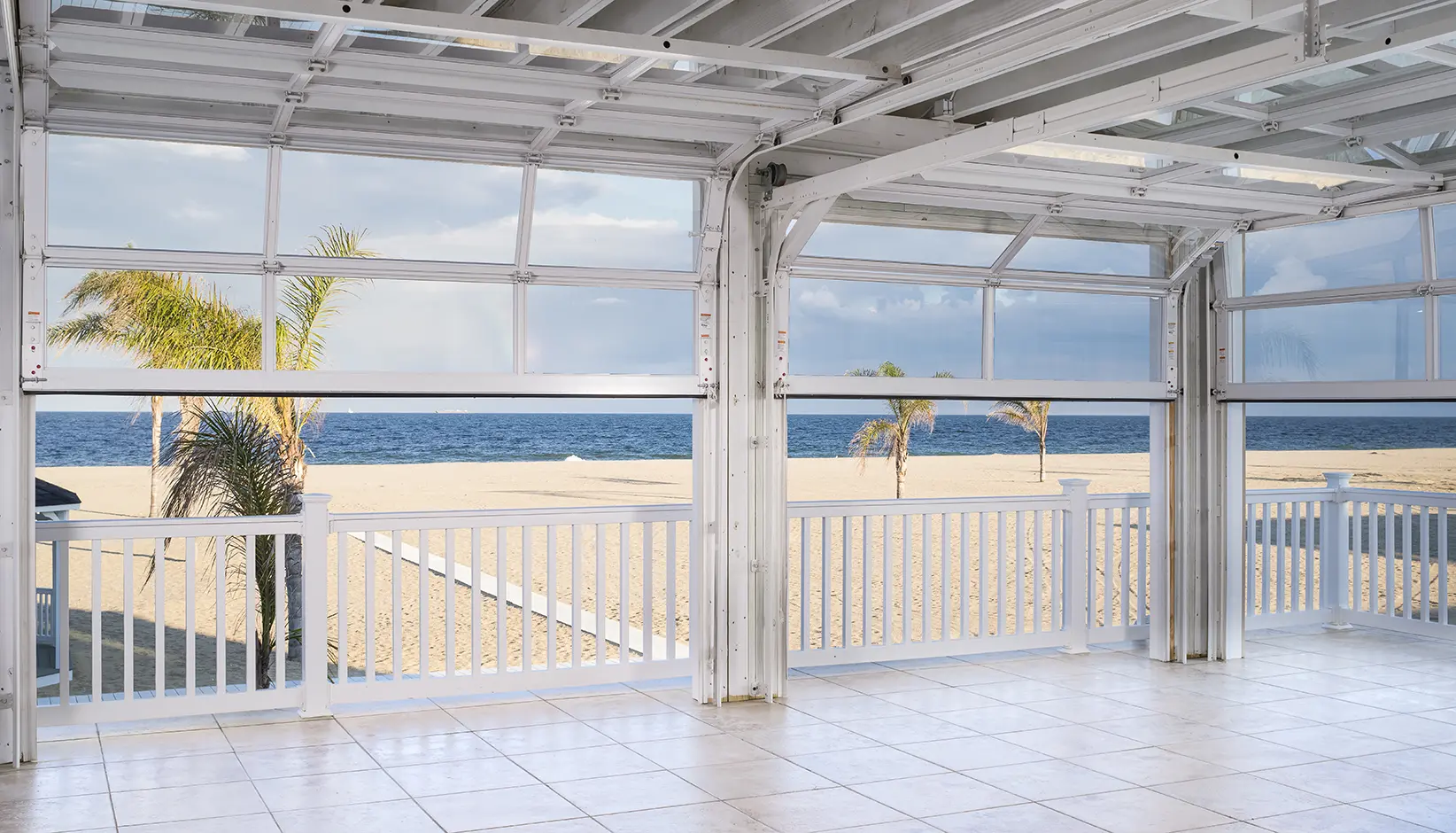

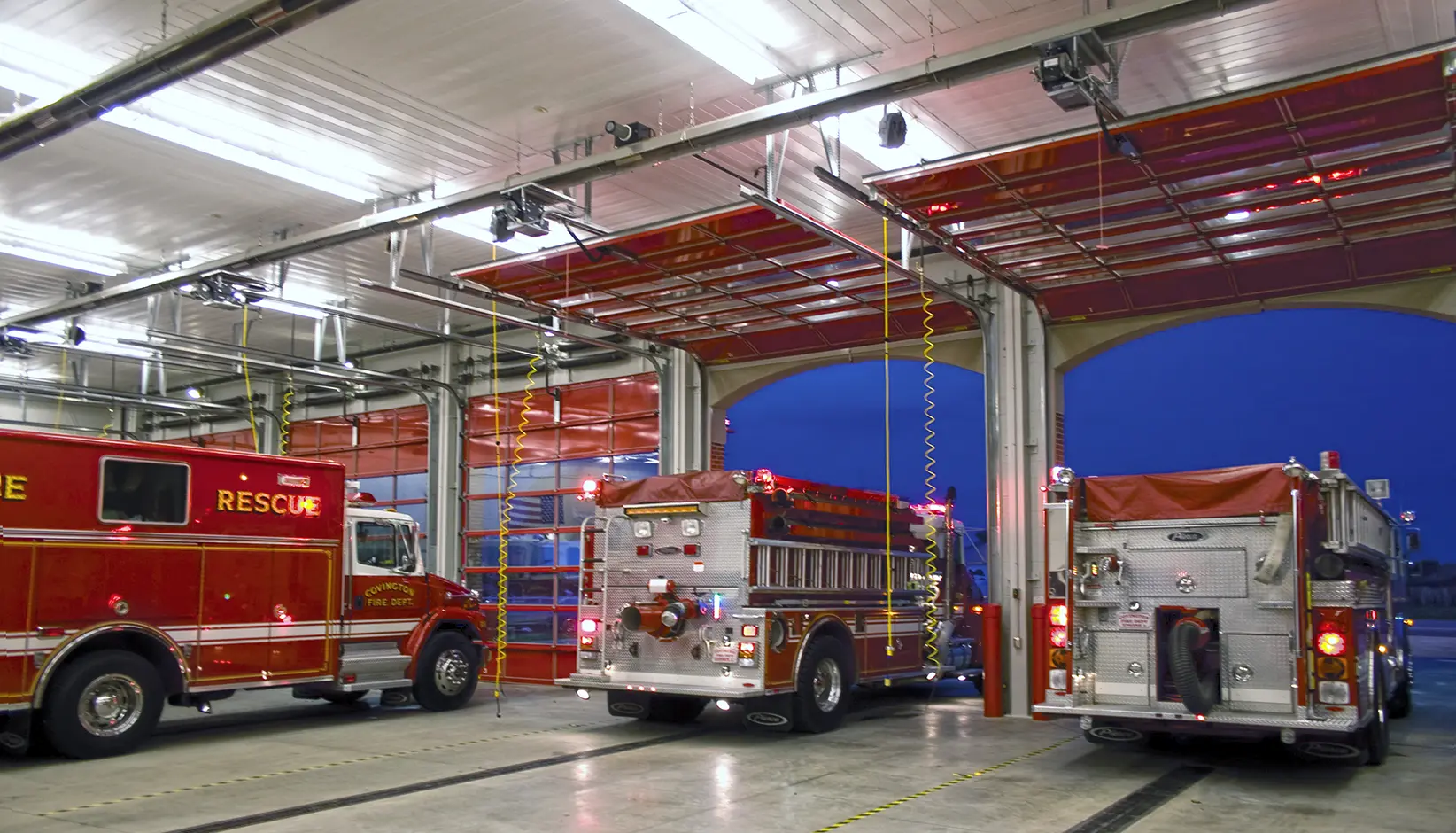

Clopay’s aluminum full-view doors are ideal for commercial buildings requiring visibility, access to natural lighting and a modern look. They're a great choice for applications ranging from restaurants and fire stations to car dealerships.
These overhead doors come with an aluminum frame construction and also come in solid aluminum if privacy is preferred. You can also customize your door with a wide variety of window, color, design and performance options.
ALUMINUM FULL-VIEW DOORS
GLASS/PANEL OPTIONS:
 FULL-VIEW (904) |  SOLID ALUMINUM (904) | |
 FULL-VIEW (905/906) |  SOLID ALUMINUM (905/906) |
GLAZING MATERIAL OPTIONS (904/904U):
CLEAR GLASS
5/16" CLEAR LAMINATED IMPACT-RATED GLASS**
GRAY TINTED GLASS
BRONZE TINTED GLASS
MIRRORED GLASS*
OBSCURE GLASS
WHITE LAMINATE GLASS*
BLACK LAMINATE GLASS*
FROSTED GLASS OR ACRYLIC
CLEAR ACRYLIC
GRAY ACRYLIC
WHITE ACRYLIC
CLEAR POLYCARBONATE
BRONZE POLYCARBONATE
ALUMINUM PANEL (COLOR-MATCHED)
*Mirrored and laminate not available in 1/2"
Glass options above only available on full-view sections. Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 5/8". Low-E available on insulated glass.
**Available in 904W8/904UW8 only
GLAZING MATERIAL OPTIONS (905/905U):
FROSTED ACRYLIC
CLEAR ACRYLIC
GRAY ACRYLIC
WHITE ACRYLIC
BLACK ACRYLIC
ALUMINUM PANEL (COLOR-MATCHED)
Hardcoated Acrylic options available.
Thickness is 1/8".
GLAZING MATERIAL OPTIONS (906/906U):
CLEAR TEMPERED GLASS
GRAY TINTED TEMPERED GLASS
BRONZE TINTED TEMPERED GLASS
TEMPERED MIRRORED GLASS
TEMPERED OBSCURE GLASS
ALUMINUM PANEL (COLOR-MATCHED)
Low E glass available.
Glass thickness available in 1/8", 1/4" and 1/2".
COLOR OPTIONS:
548ae53a7d064605ba828e996083958a.webp?sfvrsn=8c16c031_1/clear-aluminum-(anodized)548ae53a7d064605ba828e996083958a.webp "CLEAR ALUMINUM (ANODIZED)")
CLEAR ALUMINUM (ANODIZED)
STANDARD WHITE
BRONZE (PAINTED)
41b0f13537a5432fac7f1b0bb02c62d9.webp?sfvrsn=8edf4a2_1/chocolate-(painted)41b0f13537a5432fac7f1b0bb02c62d9.webp "CHOCOLATE (PAINTED)")
CHOCOLATE (PAINTED)
BRONZE ANODIZED*
BLACK (ANODIZED)*
DARK BRONZE ANODIZED*
*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
Custom powder coat, Color Blast®, and anodized finishes available.
Premium finishing options include:
- RAL color powder coat
- 187 different powder coat offerings
- Custom Colors with Color Blast ® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing
*Models 904U, 905U and 906U are not available with powder coat finish.
Performance Options Available:
Double-end hinge
3” Track
High performance hardware
features 10 gauge end hinges, heavy-duty top bracket and 3" sealed roller with 5/8" stem.
25,000, 50,000 or 100,000 cycle springs available.
Exhaust port can be cut into any type of solid sectional door. Available in select sizes.
WindCode® reinforcement available up to W8 design pressure (DP) 52 PSF, depending on door configuration. Doors tested 50% greater than DP.
Aluminum Full-View Doors
MODEL 904/904U, 905/905U, 906/906U | |
|---|---|
| Exterior Skin Pattern: | Recessed aluminum panel |
| Exterior Aluminum Gauge: | 6063-T5 Aluminum |
| Rails and Stiles: | Polyurethane Insulated (904U, 905U, 906U only) |
| Colors: | Clear Aluminum (Anodized), Standard White, Bronze (Painted), Chocolate (Painted), Bronze (Anodized), Dark Bronze (Anodized) |
| Limited Warranty: | 5-Year Finish / 1-Year Material and Workmanship / 1-Year Hardware |
Made of 2-1/8” durable commercial grade aluminum, making it virtually maintenance-free and long-lasting.
Insulated models made of 2-1/8" durable commercial grade aluminum with polyurethane insulation
Tongue-and-groove with integral joint seal for further reduction of air and water infiltration.
Smooth flat frame edge design for a more contemporary look.
Reinforcing fin included on doors wider than 14’. Doors 12’ and under do not use built-in reinforcing fin. Usage on widths 12’2” to 14’ depend upon glass weight. WINDCODE® doors may vary.
| Models | BIM | Shop Drawing | Specification | Literature (PDF) | Instruction Manual (PDF) | Warranty |
|---|---|---|---|---|---|---|
| Aluminum | ||||||
| Model 904 |  |
 |
 |
904 Brochure | Installation Manual | |
| Model 904U | |
|
|
904 Brochure | Installation Manual | |
| Model 905 | |
905-906 Brochure | Installation Manual | |
||
| Model 905U | |
905-906 Brochure | Installation Manual | |
||
| Model 906 | |
905-906 Brochure | Installation Manual | |
||
| Model 906U | |
905-906 Brochure | Installation Manual | |
||
COMMERCIAL HARDWARE
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.
- 14 gauge hinges
- Commercial 10 ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for easy operation
- Inside slide lock for increase security
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
COMMERCIAL TRACK APPLICATIONS
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options. Learn more
COMMERCIAL TORSION SPRINGS
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. Click here for details
