Clopay’s full-view series doors are ideal for commercial buildings requiring visibility

Clopay’s full-view series doors are ideal for commercial buildings requiring visibility, access to natural lighting and modern look. They're the perfect choice for everything from restaurants and fire stations to service stations and car dealerships.

These overhead doors are available with aluminum or steel frame construction, providing options that ensure maximum durability and reliability. Customize your door with a wide variety of window, color, design and performance options.

Download Product Brochure

Insulated Steel Full-View Doors

ModelSection ThicknessEmbossExterior Gauge Section Design InsulationR-Value Solid*R-Value w/Glass**Thermal BreakMax Width✭Max Height✭
37292"Stucco27Minor RibbedPolyurethane***18.48.0Yes20'2"18'0"
37282"Stucco27FlushPolyurethane***18.48.0Yes20'2"18'0"
37091-3/8"Stucco27 Minor RibbedPolyurethane***12.95.9Yes18'2"16'0"
37081-3/8"Stucco27 FlushPolyurethane***12.95.9Yes18'2"16'0"
32092"Stucco24 Minor RibbedPolystyrene9.14.4Yes20'2"18'0"
32082"Stucco24 FlushPolystyrene9.14.4Yes20'2"18'0"
31591-3/8"Stucco27 Minor RibbedPolystyrene6.53.4Yes18'2"16'0"
31581-3/8"Stucco27 FlushPolystyrene6.53.4Yes18'2"16'0"

*  R-values calculated per DASMA TDS-163 on a solid door

** R-values calculated per DASMA TDS-163 using weighted average with 3/4" insulated glass.

*** Intellicore Icon Clopay's proprietary polyurethane Intellicore insulation.

✭Maximum Width and Height values listed are Standard sizing.

STEEL INSULATED FULL-VIEW DOORS

GLASS/WINDOW OPTIONS:

Classic Plain Short
19-1/2” x 16”
PLAIN LONG
42” x 16”
CONTEMPORARY SLIM WINDOW IN SILVER
Modern Slim Windows*


*Available on models 3728/3729 and 3208/3209 only.

Models 3728 and 3729 are available with 1/8" clear tempered, 1/8" frosted tempered, 3/4" insulated tempered and 3/4" frosted insulated tempered glass. Additional glazing options include: matte, pebble, bronze tinted and impact rated window.



COLOR OPTIONS:

STANDARD WHITE
STANDARD WHITE
Almond
ALMOND
Desert-Tan
DESERT TAN
Sandtone
SANDTONE
Bronze
BRONZE
MochaBrown
MOCHA BROWN
GRAY
GRAY
Charcoal
CHARCOAL
CHOCOLATE
CHOCOLATE
BLACK
BLACK*
TRINAR® WHITE
TRINAR® WHITE*
Lustra Black*±
Lustra Black*±
Lustra Charcoal*±
Lustra Charcoal*±
Lustra Silver*±
Lustra Silver*±
*Available on select models
± Finish will have smooth texture
Custom powder coat and Color Blast® finishes available.

Premium finishing options include:

  • Custom Colors with Color Blast ® Garage Door Paint System
  • Bronze, dark bronze, black or custom color anodized finishing
Clopay Color Blast® Logo

Performance Options Available:

Double-end hinge for Commercial Garage Doors
Double-end hinge
3 Inch Track for Clopay Garage Door
3” Track
High performance garage door hardware featuring 10 gauge end hinges, heavy-duty top bracket and 3' sealed roller with 5/8' stem.
High performance hardware features 10 gauge end hinges, heavy-duty top bracket and 3" sealed roller with 5/8" stem.
25,000, 50,000 or 100,000 cycle springs available for Clopay Garage Doors
25,000, 50,000 or 100,000 cycle springs available.
Exhaust port that can be cut into any type of solid Clopay sectional door
Exhaust port can be cut into any type of solid sectional door. Available in select sizes.
windcode-W
WindCode® reinforcement available up to W1 design pressure (DP) 14 PSF, depending on size. Doors tested 50% greater than DP.
Clopay Extended 8-Year Hardware Warranty
Upgrade your standard door with industrial-grade components.

Specialty Options Available:

carry-away

Mullions

Carry-away, roll-away or swing-up mullions are available on select sizes.
Safe-T-Stop™ Chain Hoist

Safe-T-Stop™ Chain Hoist

The Safe-T-Stop is a controlled descent sectional door hand hoist with an integral braking system allowing users to operate the door with confidence.

Steel Insulated Full-View Doors

All of our Steel Insulated Door models come with the following:
Joint Design: Tongue and groove section with continuous foam thermal break prevents cold or heat from passing through the section
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Limited Warranty: 10-year paint / 10-year delamination / 1 year material and workmanship / 1 year hardware

Model 3728/3729

Section Design/Emboss: (3728) 2” thick stucco embossed steel with flush exterior skin pattern
(3729) 2” thick stucco embossed steel with minor ribbed exterior skin pattern
Steel Gauge: 27 exterior; 27 interior
Steel insulated full-view garage doors from Clopay for models 3728/3729

Model 3708/3709

Section Design/Emboss: (3708) 1 3/8” thick stucco embossed steel with flush exterior skin pattern
(3709) 1 3/8” thick stucco embossed steel with minor ribbed exterior skin pattern
Steel Gauge: 27 exterior; 27 interior

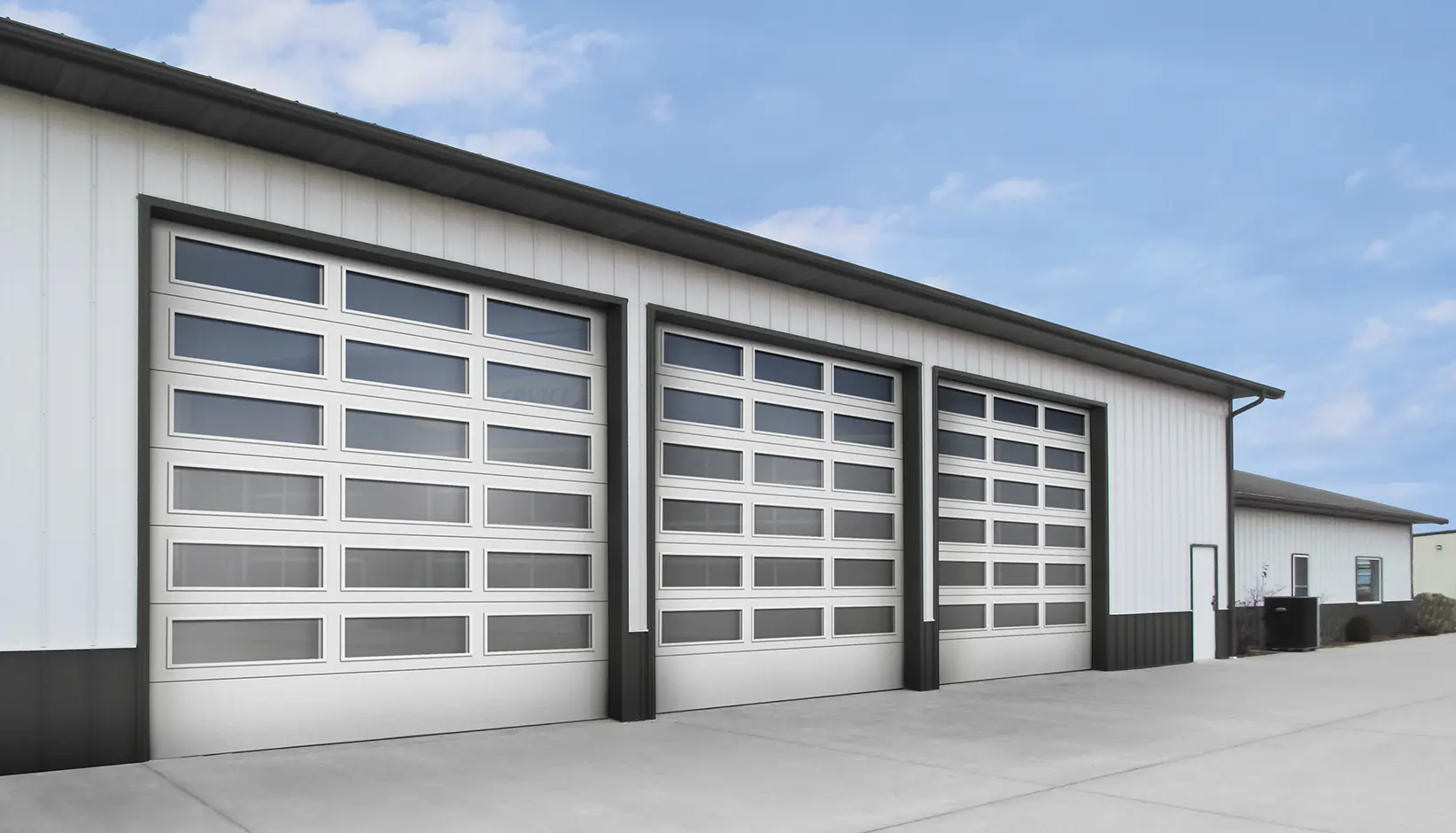

Models 3708 & 3709 with Window

MODEL 3208/3209

Section Design/Emboss: (3208) 2” thick stucco embossed steel with flush exterior skin pattern
(3209) 2” thick stucco embossed steel with minor ribbed exterior skin pattern
Steel Gauge: 24 exterior; 27 interior

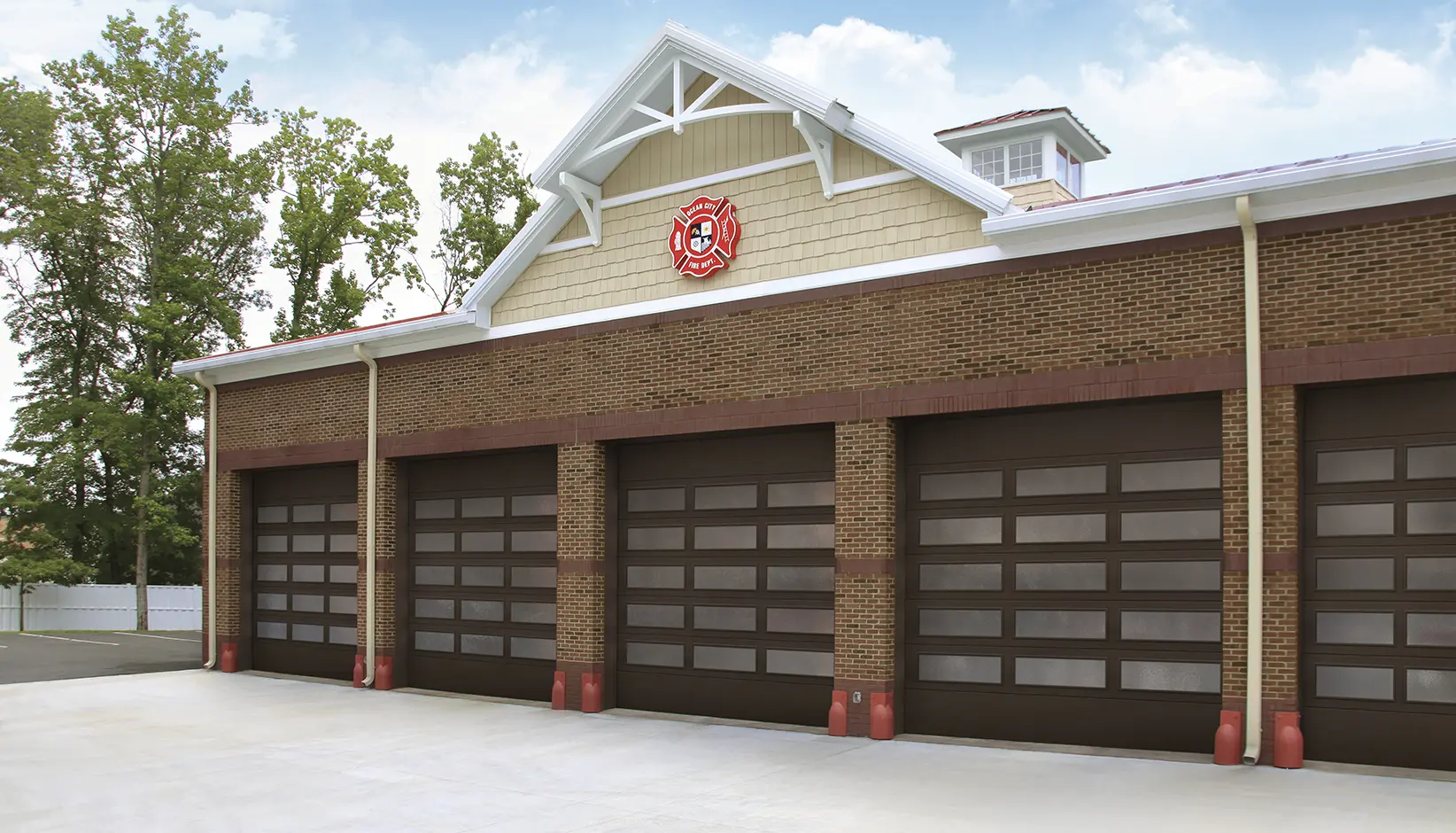

Steel insulated full-view garage doors from Clopay for models 3208/3209

Model 3158/3159

Section Design/Emboss: (3158) 1 3/8” thick stucco embossed steel with flush exterior skin pattern
(3159) 1 3/8” thick stucco embossed steel with minor ribbed exterior skin pattern
Steel Gauge: 27 exterior: 27 interior
Models 3158 & 3159 with Window



COMMERCIAL HARDWARE

Commercial door closures are manufactured with durable hardware to meet the demands of high-traffic environments. All of our doors include the standard hardware listed below. To view hardware upgrades, select the “Options” tab.

  • 14-gauge hinges
  • Commercial 10-ball steel rollers with options for nylon tire rollers
  • 10,000 cycle torsion springs
  • Steel step plate and lift handle for simplified operation
  • Inside slide lock for improved security
  • 19 gauge steel hinge support plates
  • 18-gauge single end stiles; 16-gauge double end stiles
  • Galvanized aircraft cables with 7:1 safety factory
  • 2” or 3” track in a variety of configurations to meet building design requirements

COMMERCIAL TRACK APPLICATIONS

Commercial and industrial buildings often need to meet code requirements and ADA standards for space. Avoid wear and tear on overhead doors and mitigate safety risks by providing your client with the best overhead door track for their application. Clopay track solutions include standard lift, low headroom with a front or rear mount, follow roof pitch lift, full vertical lift, and combination options. Learn more

COMMERCIAL TORSION SPRINGS

Commercial and industrial overhead garage doors vary in size, design, and operation. Your torsion spring ensures that your door withstands the test of time and maintains peak performance. Clopay torsion spring options can be designed for the industry standard of 10,000 cycles or can be upgraded to 25,000, 50,000, or 100,000 expected life cycles.  Click here for details
