Energy Series with Intellicore

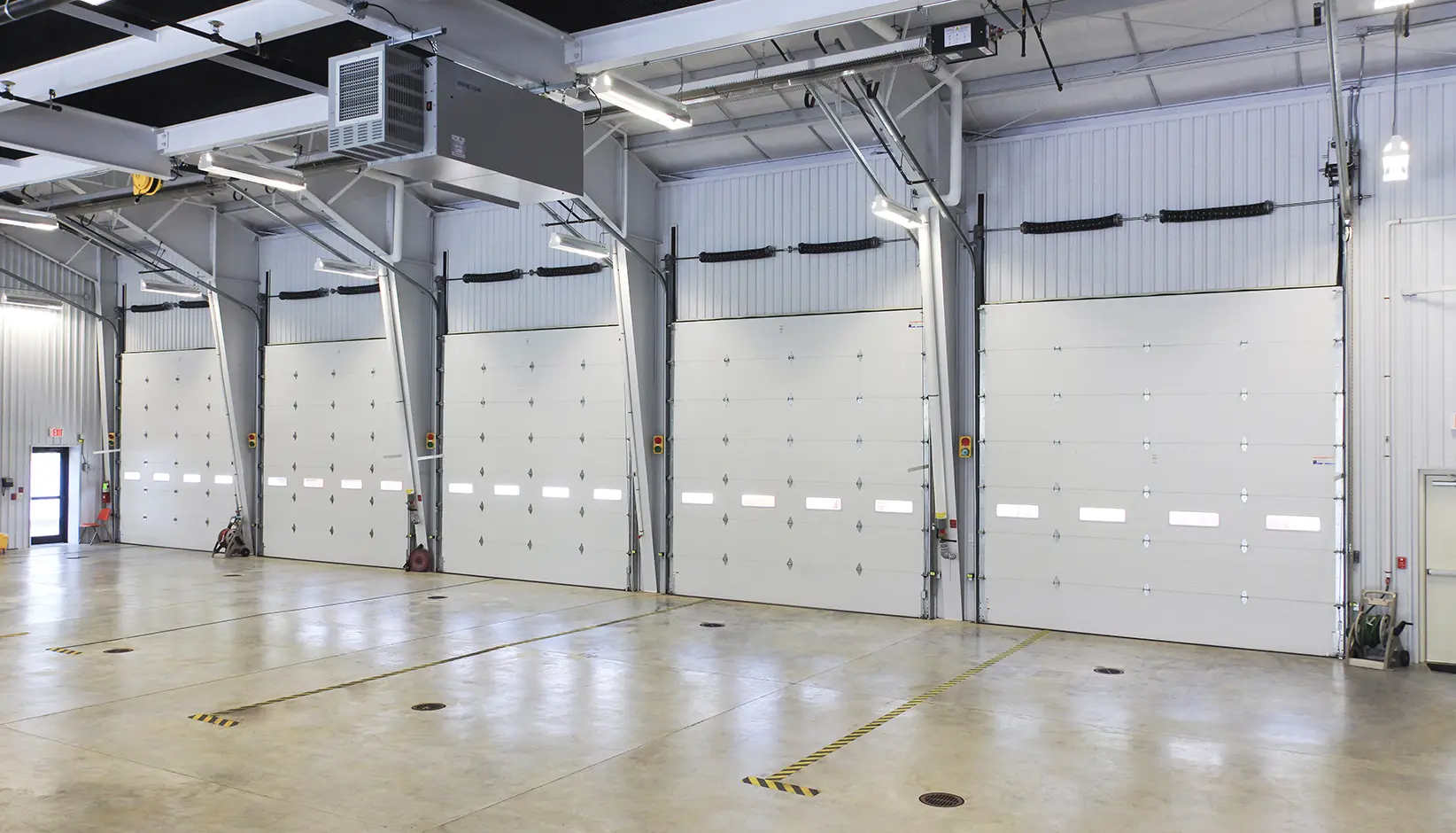

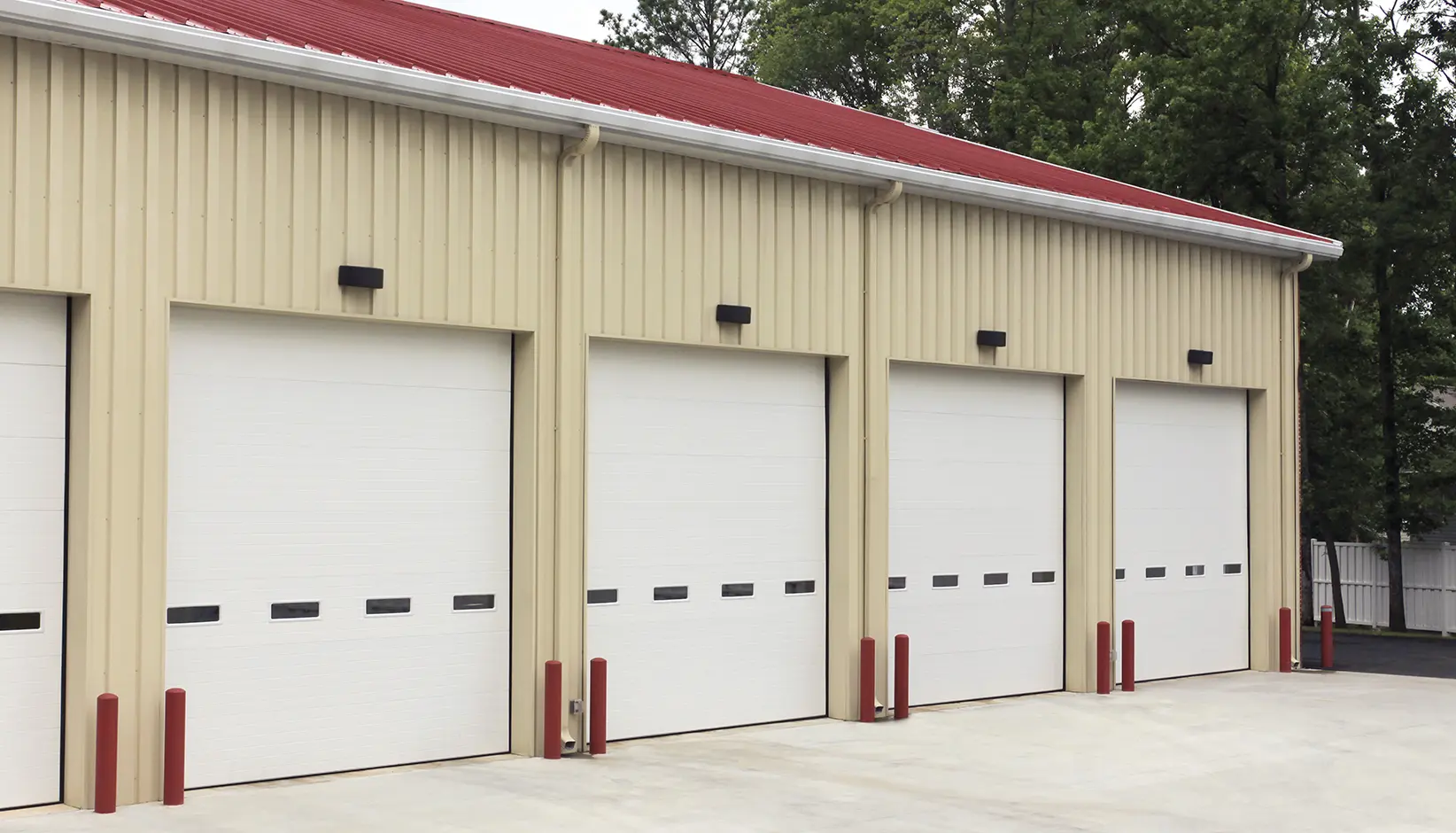

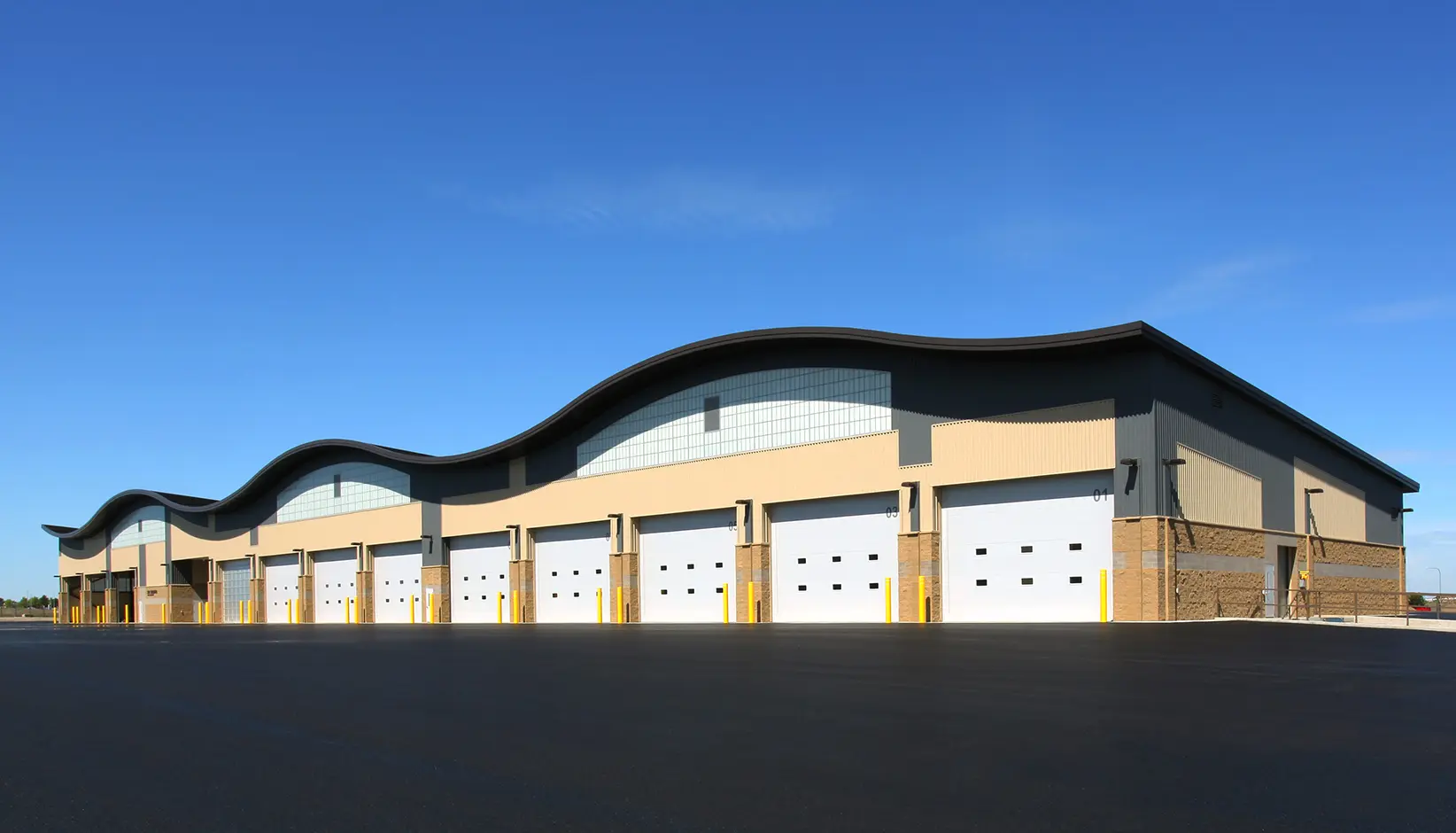

Climate control, reliability, durability-- our premier, thermally broken, polyurethane insulated steel garage doors have it all, providing excellent temperature control, energy efficiency and long-lasting service for a wide range of applications, such as firehouses, warehouses, and municipal buildings.
Download Product BrochureIntellicore® doors come with a variety of options to address your building requirements. Options below are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.
DESIGN OPTIONS:
- Windows
- 24"x8"
- 24"x12"
- Full View (pre-painted white or brown or clear anodized)
- Black frame Window with Rounded Corners
COLORS:
- White - All Models
- Brown - All Models
- Black - 3724
- Tan - 3715, 3717, 3718, 3724
- Gray - 3715, 3717, 3718, 3724
- ColorBlast - All models
PERFORMANCE OPTIONS:
- High Cycle Springs (25K, 50K and 100K available)
- 3" heavy duty track (where not standard)
- Outside keyed Security Lock
- Double End Stiles
- Design pressure rated (WindCode)
- Impact Rated
- Photo eyes, sensing edges and Operators
- Sustainable Door Upgrade
- Header (top) and Jamb Seals
CUSTOM OPTIONS:
- Mullions
- Breakaway Sections
- Pass Door
MODEL 3730
| Panel Design: | 3" thick stucco embossed ribbed steel exterior |
| Steel Gauge: | 27 gauge (.016" min) exterior; 28 gauge (.015" min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | Snow mist white, commercial brown |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |
MODEL 3720 / 3724 / 3722
| Panel Design: | (3720 & 3724) 2" thick stucco embossed steel exterior with minor ribbed pattern (3722) 2" thick stucco embossed flush steel exterior |
| Steel Gauge: | 3720) 27 gauge (.016" min) exterior; 28 gauge (.015" min) interior (3724) 24 gauge (.022" min) exterior; 28 gauge (.015" min) interior (3722) 20 gauge (.034" min) exterior; 28 gauge (.015" min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 18.4* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | 3720 & 3722) Pre-painted snow mist white, commercial brown (3724) Pre-painted snow mist white, brown, commercial tan, gray and Trinar white |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |
*Calculated door section R-value is in accordance with DASMA TDS-163.
COMMERCIAL HARDWARE
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.
- 14 gauge hinges
- Commercial 10 ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for easy operation
- Inside slide lock for increase security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
