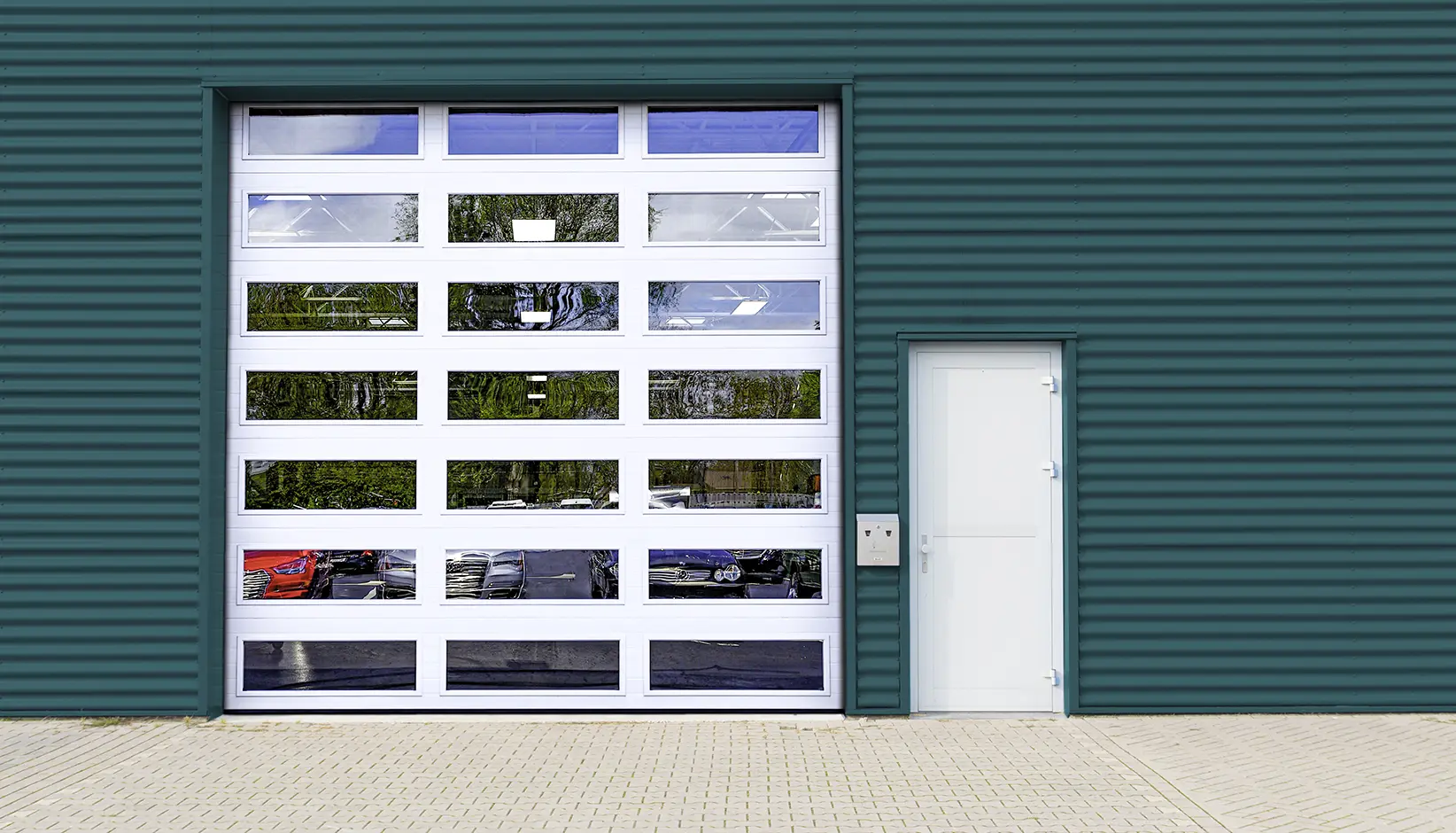

COMMERCIAL GLASS OVERHEAD DOORS ALUMINUM OR STEEL FRAME
The Clopay Extreme™ Series combines high-strength durability with the ability to open at 24” per second. Powered by the robust LiftMaster opener, the Extreme™ Series- commercial doors are a great fit for emergency facilities, distribution center warehouses, car dealerships and much more. Manufactured with heavy duty hardware, these low maintenance sectional doors boast five times the spring life of an average commercial sectional door for optimal performance.
Download Product BrochureSTANDARD SPECIFICATIONS
| Max Width | 16'2" |
| Max Height | 14'0" |
| Max Door Weight | 1,000 lbs |
| Upward Travel | 24" per second |
| Downward Travel | 15" per second |
| Stiles | Double end stiles (standard) |
| Glazing Available | Tempered, insulated tempered, acrylic and polygal |
| Springs* | 50,000 cycle standard (Max cycles available on a single shaft line) |
| Track Size | 2" angle mount track standard 3" track where applicable |
| Track Type | Standard lift, high lift and full vertical |
| Warranty | Standard paint – 5 years Color Blast® finish – 5 years Material and workmanship – 1 year Hardware – 1 year |
*Cycles can vary depending on door configuration. |

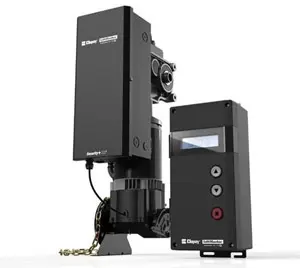

HIGH PERFORMANCE DOOR SYSTEM POWERED BY LIFTMASTER
The Clopay Extreme™ Series High Performance Door System boasts an opening speed of 24" per second, allowing productivity to flourish while also delivering a flawless aesthetic thanks to optional full-view windows. Tandem nylon rollers improve roller life and reduce running noise for smooth, quiet operation while safety stays top of mind with enhanced features such as 3' of light curtain protection, a cable management system and standard cable tension monitor.
For operator specifications, click here.
ALUMINUM FULL-VIEW DOORS
| Model | Thickness | Spacing | R-Value | Max Width✭ | Max Height✭ |
| EX904 | 2-1/8" | Equal width & spacing | N/A | 16'2" | 14'0" |
| EX904U | 2-1/8" | Equal width & spacing | 3.8* | 16'2" | 14'0" |
✭Maximum Width and Height values listed are Standard sizing.
*With clear insulated glass
INSULATED STEEL FULL-VIEW DOORS
| Model | Section Thickness | Emboss | Exterior Gauge | Section Design | Insulation | R-Value Solid* | R-Value w/Glass** | Thermal Break | Max Width✭ | Max Height✭ |
| EX3729 | 2" | Stucco | 27 | Minor Ribbed | Polyurethane*** | 18.4 | 8.0 | Yes | 16'2" | 14'0" |
| EX3728 | 2" | Stucco | 27 | Flush | Polyurethane*** | 18.4 | 8.0 | Yes | 16'2" | 14'0" |
| EX3709 | 1-3/8" | Stucco | 27 | Minor Ribbed | Polyurethane*** | 12.9 | 5.9 | Yes | 16'2" | 14'0" |
| EX3708 | 1-3/8" | Stucco | 27 | Flush | Polyurethane*** | 12.9 | 5.9 | Yes | 16'2" | 14'0" |
| EX3209 | 2" | Stucco | 24 | Minor Ribbed | Polystyrene | 9.1 | 4.4 | Yes | 16'2" | 14'0" |
| EX3208 | 2" | Stucco | 24 | Flush | Polystyrene | 9.1 | 4.4 | Yes | 16'2" | 14'0" |
| EX3159 | 1-3/8" | Stucco | 27 | Minor Ribbed | Polystyrene | 6.5 | 3.4 | Yes | 16'2" | 14'0" |
| EX3158 | 1-3/8" | Stucco | 27 | Flush | Polystyrene | 6.5 | 3.4 | Yes | 16'2" | 14'0" |
* R-values calculated per DASMA TDS-163 on a solid door
** R-values calculated per DASMA TDS-163 using weighted average with 3/4" insulated glass.
***
Clopay's proprietary polyurethane Intellicore insulation.
✭Maximum Width and Height values listed are Standard sizing.
ENERGY SERIES
| Model | Section Thickness |
Emboss | Ext. Skin Pattern |
Ext. Steel Gauge |
R-Value* | Thermal Break | Max Width | Max Height | |
| EX3220 | 2" | Stucco | Flush | 20 gauge | 9.1 | Thermally broken | 16'2" | 14'0" | |
| EX3213 | 2" | Woodgrain | Raised panel | 24 gauge | 9.1 | Thermally broken | 16'2" | 14'0" | |
| EX3211 | 2" | Woodgrain | Flush | 24 gauge | 9.1 | Thermally broken | 16'2" | 14'0" | |
| EX3200 | 2" | Stucco | Minor Ribbed | 24 gauge | 9.1 | Thermally broken | 16'2" | 14'0" | |
| EX3150 | 1-3/8" | Stucco | Minor Ribbed | 27 gauge | 6.5 | Thermally broken | 16'2" | 14'0" |
*Calculated door section R-value is in accordance with DASMA TDS-163
ENERGY SERIES WITH INTELLICORE®
| Model | Thickness | Emboss | Exterior Steel | Pattern |  |
R-Value* | Std Max Width** | Std Max Height |
| EX3723 | 2" | Woodgrain | 27 Gauge | Raised Panel | |
18.4 | 16'2" | 14'0" |
| EX3721 | 2" | Woodgrain | 27 Gauge | Flush | |
18.4 | 16'2" | 14'0" |
| EX3720 | 2" | Stucco | 27 Gauge | Minor Ribbed |
|
18.4 | 16'2" | 14'0" |
| EX3717 | 1 3/4" | Stucco | 27 Gauge | Minor Ribbed |
|
16.2 | 16'2" | 14'0" |
| EX3718 | 1 3/4" | Stucco | 27 Gauge | Flush |
|
16.2 | 16'2" | 14'0" |
| EX3715 | 1 3/8" | Stucco | 27 Gauge | Minor Ribbed |
|
12.9 | 16'2" | 14'0" |
*Calculated door section R-value is in accordance with DASMA TDS-163
**For sizes over 32'2" wide consult factory for specific configuration requirements.
OPERATOR SPECIFICATIONS
| Motor Design | 1.25 HP configuration serving single phase 115V/230V and 3-phase 230V configurations 3-phase 460/575V available with accessory transformer |
| Wall Controller | Separation of low and high voltage wiring - includes functionality of 3-button station, PLUS setting door profile, programming limits, diagnostics |
| Programming | Complete the following programming at floor level: set limits; choose door profiles for speed; set operating modes; select photo entrapment devices |
| Display | Provides textual status indications including - Absolute cycle count - Service cycle count - Diagnostics messages - Door/operator status |
| Cycle Counter | Re-settable cycle counter via the wall controller and/or through MyQ facility |
| Limit Settings | Simple electronic push-button setup via the wall controller |
Extreme™ Series section doors are available through Master Authorized Dealers and Authorized Dealers. To find a MAD or AD near you, use our Dealer Locator.
Note: Extreme™ Series must have tempered glass
*Mirrored and laminate not available in 1/2"
Glass options above only available on full-view sections. Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 5/8". Low-E available on insulated glass.
COLOR OPTIONS:
548ae53a7d064605ba828e996083958a.png "CLEAR ALUMINUM (ANODIZED)")
41b0f13537a5432fac7f1b0bb02c62d9.png "CHOCOLATE (PAINTED)")
*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
Custom powder coat, Color Blast®, and anodized finishes available.
Premium finishing options include:
- RAL color powder coat
- 187 different powder coat offerings
- Custom Colors with Color Blast ® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing
*Model EX904U is not available with powder coat finish.
STEEL INSULATED FULL-VIEW DOORS
GLASS/WINDOW OPTIONS:
 19-1/2” x 16”
|
 42” x 16”
|
 Modern Slim Windows*
|
*Available on models EX3728/EX3729 and EX3208/EX3209 only.
Models EX3728 and EX3729 are available with 1/8" clear tempered, 1/8" frosted tempered, 3/4" insulated tempered and 3/4" frosted insulated tempered glass. Additional glazing options include: matte, pebble, bronze tinted and impact rated window.
COLOR OPTIONS:
± Finish will have smooth texture
Custom powder coat and Color Blast® finishes available.
Premium finishing options include:
- Custom Colors with Color Blast ® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing
SAFETY FEATURES
WINDCODE®
EX904/EX904U
EX3700 SERIES
EX3200 SERIES
| Models | BIM | Shop Drawing | Specification | Literature(PDF) | Instruction Manual(PDF) | Warranty |
|---|---|---|---|---|---|---|
| Three Layer - Polystyrene - 1-3/8 inch | ||||||
| Model EX3150 |  |
   |
Extreme™ Series Brochure | |||
| Model EX3158 | |
Extreme™ Series Brochure | ||||
| Model EX3159 | |
Extreme™ Series Brochure | ||||
| Three Layer - Polystyrene - 2 inch | ||||||
| Model EX3200 | |
|
Extreme™ Series Brochure | |||
| Model EX3208 | |
Extreme™ Series Brochure | ||||
| Model EX3209 | |
Extreme™ Series Brochure | ||||
| Model EX3211 | |
Extreme™ Series Brochure | ||||
| Model EX3213 | |
Extreme™ Series Brochure | ||||
| Model EX3220 | |
|
Extreme™ Series Brochure | |||
| Three Layer - Polyurethane - 1-3/8 inch | ||||||
| Model EX3708 | |
Extreme™ Series Brochure | ||||
| Model EX3709 | |
Extreme™ Series Brochure | ||||
| Model EX3715 | |
|
Extreme™ Series Brochure | |||
| Three Layer - Polyurethane - 1-3/4 inch | ||||||
| Model EX3717 | |
|
Extreme™ Series Brochure | |||
| Model EX3718 | |
|
Extreme™ Series Brochure | |||
| Three Layer - Polyurethane - 2 inch | ||||||
| Model EX3720 | |
|
Extreme™ Series Brochure | |||
| Model EX3721 | |
Extreme™ Series Brochure | ||||
| Model EX3723 | |
Extreme™ Series Brochure | ||||
| Model EX3728 | |
Extreme™ Series Brochure | ||||
| Model EX3729 | |
Extreme™ Series Brochure | ||||
| Aluminum | ||||||
| Model EX904 | |
Extreme™ Series Brochure | ||||
| Model EX904U | |
Extreme™ Series Brochure | ||||
Click on appropriate icon to download
To use the Spec Wizard, click here
Track and Jamb Drawings
| dwg | dxf | ||
|---|---|---|---|
| High Lift Track |  |
 |
|
| Vertical Track | |
|
|
| Jamb Details | |
|
|
HARDWARE FEATURES
SPRINGS
50,000 cycle spring standard
Option available for maximum cycles on a single shaft line
Springs are shot peened to improve resistance to fatigue
DOUBLE END STILES
Helps improve hinge longevity
LIFT CABLE WITH THIMBLE
Thimble helps reduce wear and extend cable life
ROLLERS
Long stem tandem rollers provide longer roller life and quiet door operation
CABLE SNUBBER
Maintains tension on lift cable to prevent it from coming off of the drum
PUSHER SPRINGS
Helps prevent cable slack. Provided with standard lift track.
WINDCODE®
WindCode® reinforcement available up to W5 design pressure (DP) 36 PSF, depending on door size, configuration and exposure. Doors tested 50% greater than DP.
