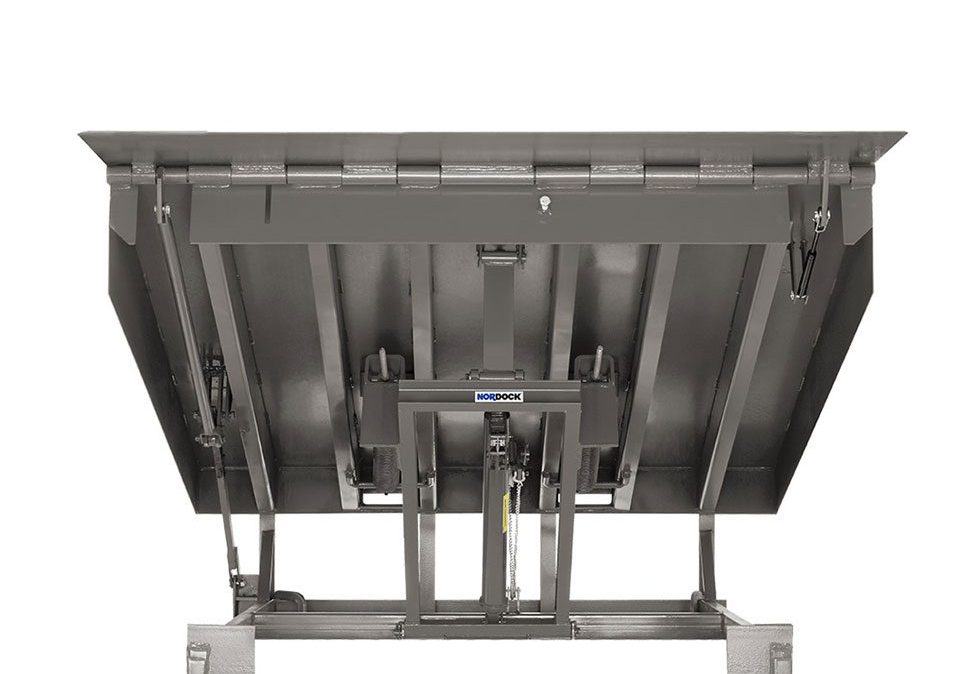

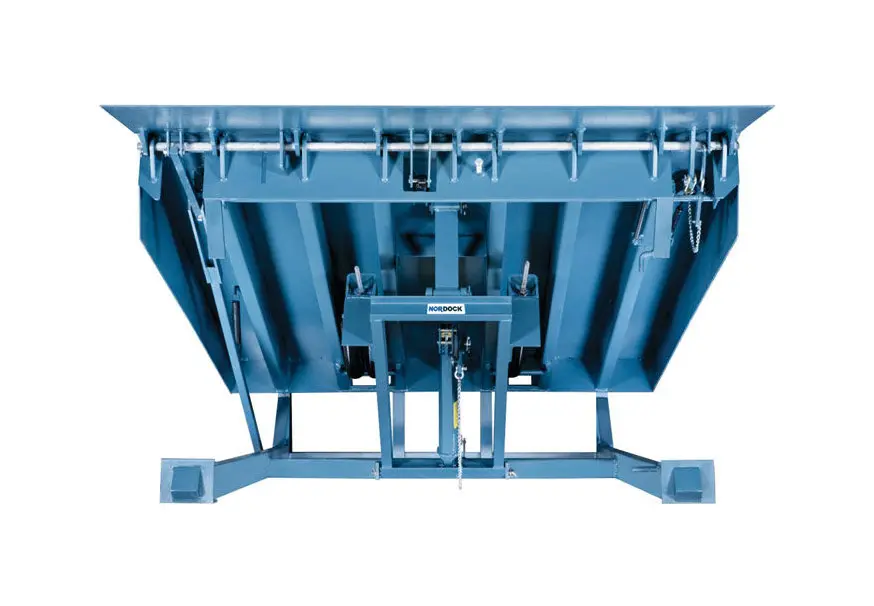

The NORDOCK Mechanical Dock Levelers are the ultimate in strength, ease of use and reliability. Equipped with an exclusive lip lug and header plate design, easy release hold-down with unlimited float and full yielding walkout lip extension for a smooth and efficient operation. Standard features include working range side guards, retractable deck stop legs, night locks and a comprehensive warranty.
The Model NM is the economical choice providing the ultimate in strength and reliability. Equipped with a lip lug hinge for low maintenance. (Capacities of 25,000 to 60,000 Lbs.)
| Model* | Width | Length |
|---|---|---|
| NM-66 | 6'0" | 6'0" |
| NM-68 | 6'0" | 8'0" |
| NM-610 | 6'0" | 10'0" |
| NM-6.56 | 6'6" | 6'0" |
| NM-6.58 | 6'6" | 8'0" |
| NM-6.510 | 6'6" | 10'0" |
| NM-76 | 7'0" | 6'0" |
| NM-78 | 7'0" | 8'0" |
| NM-710 | 7'0" | 10'0" |
* Add capacity required from 20,000 to 50,000 lbs. Example: NM-66-35.
| Model* | Width | Length |
|---|---|---|
| HM-66 | 6'0" | 6'0" |
| HM-68 | 6'0" | 8'0" |
| HM-6.56 | 6'6" | 6'0" |
| HM-6.58 | 6'6" | 8'0" |
| HM-76 | 7'0" | 6'0" |
| HM-78 | 7'0" | 8'0" |
* Add capacity required from 20,000 to 40,000 lbs. Example: HM-68-35.
The Model CM is the economical choice designed for the construction industry. Equipped with a tube style lip hinge. (Capacities of 30,000 to 45,000 Lbs.)
| Model* | Width | Length |
|---|---|---|
| CM-66 | 6'0” | 6'0” |
| CM-68 | 6'0” | 8'0” |
| CM-76 | 7'0” | 6'0” |
| CM-78 | 7'0” | 8'0” |
* Add capacity required from 25,000 to 45,000 lbs. Example: CM-68-35.
